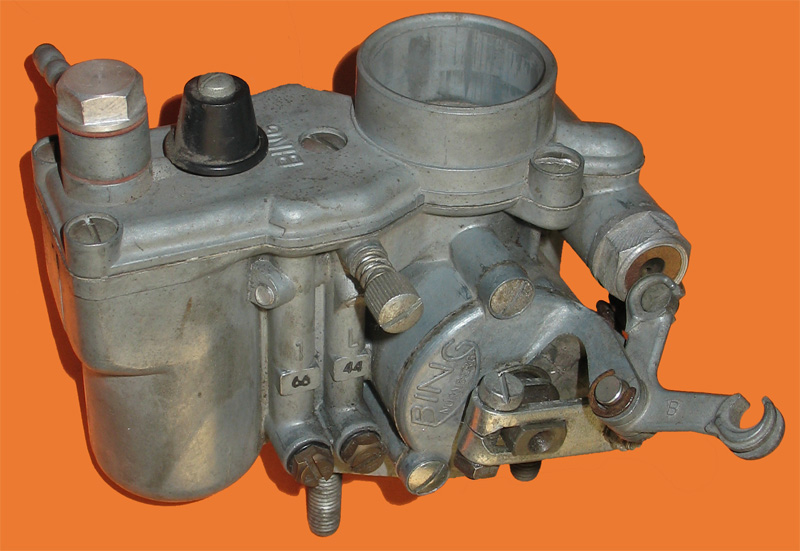

A NICE NOS "7/26/16" BING CARB FOR AN NSU 333
This page is for reference only.  I sold this carb a while back...

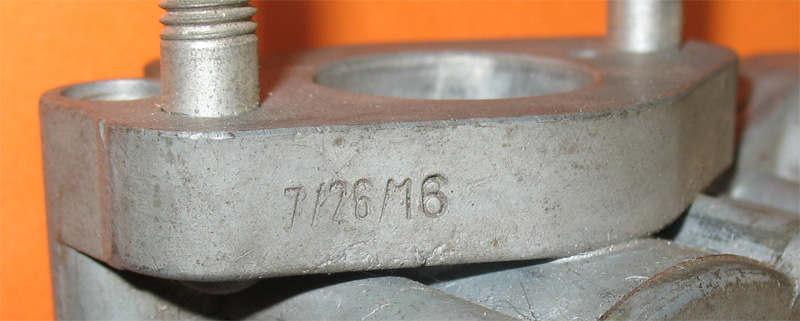

I asked the Bing Agency to identify this carb, and they refer to it as a 7/26/16 carb from an NSU 333.

7/26/16 - Tuning Manual Data (from the Bing Agency)

replacement for

7/26/10_

replaced by

_

similar to

f. Ílbadfilter Typ 40_

engine model

Prinz (Synchronprinz)_



_



Fa.V._

stroke

4_

cylinder

2_

displacement

585_

carburettor body

14-110-26-021_

motor flange

Flansch_

filter connection

40_

cover plate

_

screw cover

_

slide

22-844-1_

mixing chmaber insert

_

float chamber

fest_

cover for float chamber

32-801-1001_

fuel connector

34-040, Schlauchanschlußstück nach rechts_

float

35-070_

slide adjusting screw

50-085_

clamping screw

_

main jet

44-907/66_

spare jet

_

pilot jet

44-907/44_

starting jet

44-031/90_

idle air jet

_

correction air jet

_

needle jet / mixing tube

_

jet needle

_

position (jet needle)

_

float needle

47-914_

tipper

_

for after market

_

air regulation jet

50-008_

open

2x_

float needle

_

atomizer

_

pipe bend

_

isolating bush

_

filter

_

additional information

Mischrohre: I. Nr. 6 Korr. 44-061/90_
